Prerequisites

1. You have an AWS account with administrative access.
2. Terraform (>= 1.9) is installed with AWS authentication configured.
3. kubectl is installed for cluster access.
4. You are an Account Owner in Monte Carlo.

This guide walks through deploying the Generic Agent on AWS using EKS (Elastic Kubernetes Service) with the monte-carlo-data/mcd-k8s-agent/aws Terraform module. The module provisions all required infrastructure — including VPC, EKS cluster, S3 storage, Secrets Manager, and IAM — and deploys the agent via Helm.

Architecture

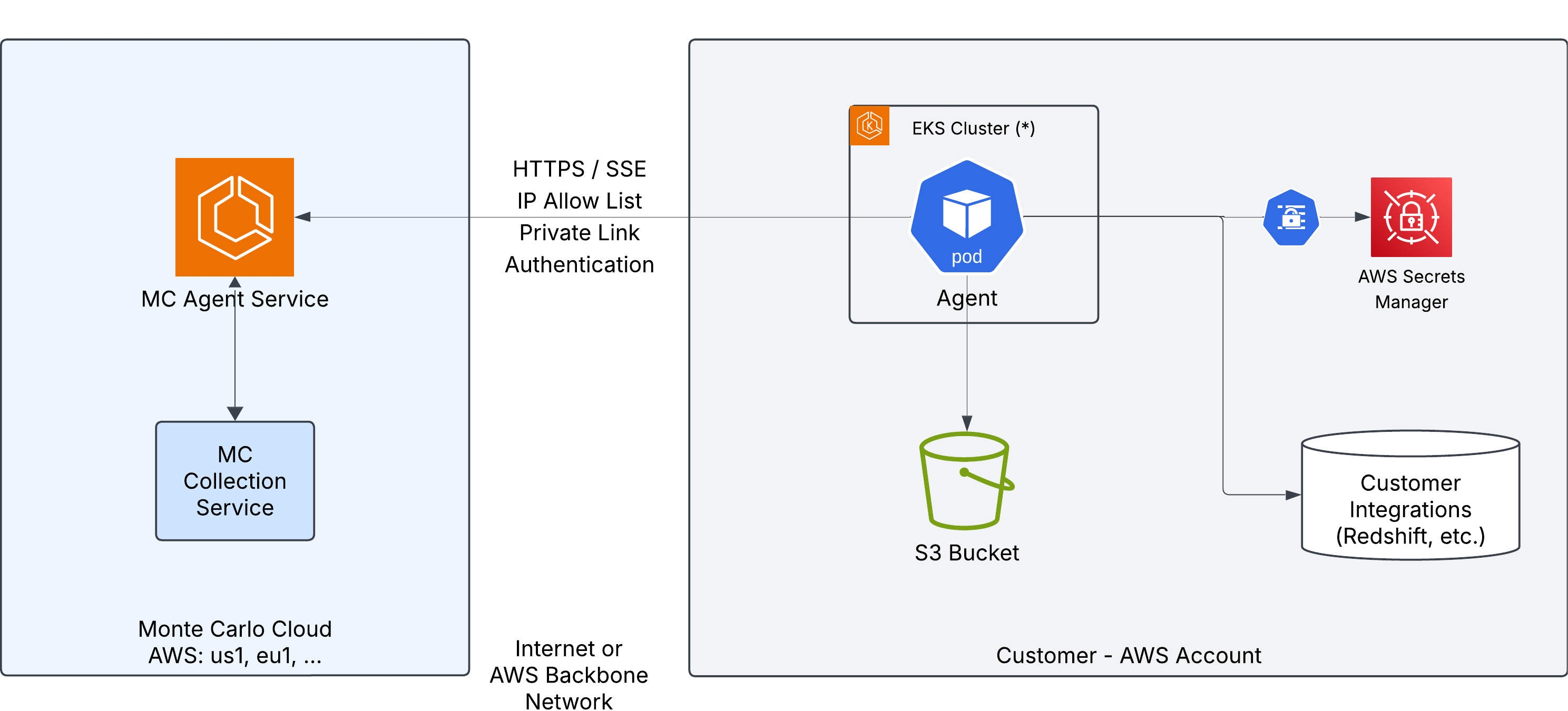

The diagram below shows the AWS-specific deployment architecture. For a general overview of how the Generic Agent works, see the Architecture section on the main page.

The agent runs as a pod in an EKS cluster and connects to:

• S3 Bucket — object storage for sampling and temporary data during operations.
• AWS Secrets Manager — stores the agent token and integration credentials, synced to the cluster via External Secrets Operator.
• Customer Integrations — the data sources (e.g. Redshift, Snowflake) being monitored by Monte Carlo.

Traffic to the Monte Carlo platform can optionally be routed over AWS PrivateLink instead of the public internet.

Provider Configuration

This module does not configure the aws provider — your root module must do so. At minimum, the provider must set the target region. The module derives the AWS region from the provider configuration:

provider "aws" {
  region = "us-east-1"
}

The module applies Monte Carlo agent tags to all resources it creates. To add your own tags alongside these, use the custom_default_tags variable.

Steps

1. Register the Agent

2. Deploy the Agent

2.1 Configure the Terraform Module

📘

Set backend_service_url to the Public endpoint shown in the Agent Service section of the Account Information page in Monte Carlo.

📘

Check Docker Hub for the latest available chart version and update the helm.chart_version value accordingly.

Agent token secret

You must configure the agent token secret using one of two options:

Option 1 — Provide credentials at deploy time (recommended): The module creates and populates the secret in AWS Secrets Manager.

token_credentials = {
  mcd_id    = var.mcd_id
  mcd_token = var.mcd_token
}

Define the variables in a terraform.tfvars file:

mcd_id    = "your-mcd-id"
mcd_token = "your-mcd-token"

Option 2 — Use a pre-existing secret: Point the module to an existing secret in AWS Secrets Manager by name. The secret must be in the same region as the module deployment. The secret value must be a JSON object with the following format:

{
  "mcd_id": "<your-mcd-id>",
  "mcd_token": "<your-mcd-token>"
}

token_secret = {
  create = false
  name   = "my-existing-secret-name"
}

Full deployment (new VPC and cluster)

This is the simplest option — the module creates all infrastructure from scratch:

provider "aws" {
  region = "us-east-1"
}

module "mcd_agent" {
  source = "monte-carlo-data/mcd-k8s-agent/aws"

  backend_service_url = "<backend_service_url>"

  token_credentials = {
    mcd_id    = var.mcd_id
    mcd_token = var.mcd_token
  }

  helm = {
    chart_version = "0.0.2"
  }
}

Existing VPC

If you already have a VPC, provide its ID and at least two private subnet IDs. The subnets must have outbound internet access (e.g. via NAT gateway) for pulling container images and reaching the Monte Carlo backend:

provider "aws" {
  region = "us-east-1"
}

module "mcd_agent" {
  source = "monte-carlo-data/mcd-k8s-agent/aws"

  backend_service_url = "<backend_service_url>"

  helm = {
    chart_version = "0.0.2"
  }

  networking = {
    create_vpc                  = false
    existing_vpc_id             = "vpc-0123456789abcdef0"
    existing_private_subnet_ids = ["subnet-aaa111", "subnet-bbb222"]
  }
}

❗️

The module creates VPC endpoints for S3, Secrets Manager, STS, and EC2 by default. If your VPC already has these endpoints, set networking.create_vpc_endpoints to false to avoid conflicts. The existing VPC must have DNS hostnames enabled (enable_dns_hostnames = true) for VPC Interface endpoints.

Existing EKS cluster

If you already have an EKS cluster, the module can deploy the agent into it:

provider "aws" {
  region = "us-east-1"
}

module "mcd_agent" {
  source = "monte-carlo-data/mcd-k8s-agent/aws"

  backend_service_url = "<backend_service_url>"

  helm = {
    chart_version = "0.0.2"
  }

  cluster = {
    create                = false
    existing_cluster_name = "my-cluster"
  }

  networking = {
    create_vpc = false
  }
}

Infrastructure only (manual Helm deployment)

To provision AWS infrastructure without deploying the agent via Helm — useful if you want to manage the Helm release separately:

provider "aws" {
  region = "us-east-1"
}

module "mcd_agent" {
  source = "monte-carlo-data/mcd-k8s-agent/aws"

  backend_service_url = "<backend_service_url>"

  helm = {
    chart_version = "0.0.2"
    deploy_agent  = false
  }
}

output "helm_values" {
  value     = module.mcd_agent.helm_values
  sensitive = true
}

After applying, use the helm_values output as your values.yaml and follow the Helm deployment steps in the Kubernetes deployment guide.

AWS PrivateLink (optional)

To route traffic to the Monte Carlo backend over AWS PrivateLink instead of the public internet, add the private_link block. The module creates an interface VPC endpoint, a security group, and a Route53 private hosted zone with DNS resolution.

⚠️

Before deploying with PrivateLink, contact Monte Carlo at [email protected] to request that your AWS account be allowlisted. Include your Monte Carlo Account ID (found here) and AWS Account ID. Do not proceed until you receive confirmation.

You can find the region, VPC endpoint service name, and Private link endpoint in the Agent Service section of the Account Information page in Monte Carlo, under AWS PrivateLink. When using PrivateLink, backend_service_url must use the private link endpoint (it must contain .privatelink.).

provider "aws" {
  region = "us-east-1"
}

module "mcd_agent" {
  source = "monte-carlo-data/mcd-k8s-agent/aws"

  backend_service_url = "https://artemis.privatelink.getmontecarlo.com"

  token_credentials = {
    mcd_id    = var.mcd_id
    mcd_token = var.mcd_token
  }

  helm = {
    chart_version = "0.0.2"
  }

  private_link = {
    vpce_service_name = "<vpce_service_name>"
    region            = "us-east-1"
  }
}

After deploying, the VPC endpoint connection requires approval from Monte Carlo. Contact [email protected] and include the following output values:

terraform output vpce_id
terraform output vpce_dns_entry

The agent will not be able to communicate with the Monte Carlo backend until the connection is approved — you will see ConnectTimeout errors in the agent logs during this time. Once approved, restart the agent services and run the reachability test:

kubectl rollout restart deployment mcd-agent-deployment -n mcd-agent
kubectl rollout restart daemonset logs-collector metrics-collector -n mcd-agent

For more details on PrivateLink setup and DNS configuration, see the Agent Service AWS PrivateLink documentation.

2.2 Deploy

terraform init && terraform apply

Additional module inputs, options, and defaults can be found in the module documentation.

2.3 Verify

Configure kubectl access to the cluster:

aws eks update-kubeconfig --name <cluster_name> --region <region>

Check the agent pod is running:

kubectl get pods -n mcd-agent
kubectl logs -n mcd-agent -l app=mcd-agent --tail=30

Run the reachability test to confirm the agent can communicate with the Monte Carlo platform:

kubectl exec -n mcd-agent deploy/mcd-agent-deployment -- \
  curl -s -X POST localhost:8080/api/v1/test/reachability

A successful response contains "ok": true.

3. Enable the Agent

After verifying the agent is running, click Enable on the agent registration screen.

📘

If you've navigated away from the registration screen, go to Settings > Deployments, select your agent, and click Enable.

Once validations pass, click Enable in the validations dialog to activate the agent.

Outputs

The module exposes the following outputs:

FAQs

Can I use AWS PrivateLink instead of the internet?

Yes. The module supports optional AWS PrivateLink to route traffic to the Monte Carlo backend over a private connection. See the AWS PrivateLink section above for configuration details and the Agent Service AWS PrivateLink documentation for more information.

Does the agent require inbound network access?

No. The Generic Agent is egress-only. All connections are initiated from the agent to the Monte Carlo platform. No inbound connectivity to the agent is required.

Can I use an existing S3 bucket?

Yes. Set storage.create_bucket to false and provide storage.existing_bucket_name in the module configuration. The module automatically grants the agent's pod identity role the required S3 permissions on the specified bucket. Ensure the bucket does not have policies that deny access from the agent's IAM role. The following actions are required:

{
  "Action": [
    "s3:PutObject",
    "s3:GetObject",
    "s3:DeleteObject",
    "s3:ListBucket",
    "s3:GetBucketPublicAccessBlock",
    "s3:GetBucketPolicyStatus",
    "s3:GetBucketAcl"
  ],
  "Resource": [
    "arn:aws:s3:::<your-bucket-name>",
    "arn:aws:s3:::<your-bucket-name>/*"
  ],
  "Effect": "Allow"
}

Can I customize the Helm values?

Yes. Use the custom_values variable to merge additional values with the module-generated Helm configuration. This accepts any map matching the chart's values.yaml schema.

How do I add credentials for data source integrations?

1. Create a secret in AWS Secrets Manager with the integration credentials. See the Self-Hosted Credentials documentation for the JSON format for each integration type.

   Bash

   aws secretsmanager create-secret --name mcd/integrations/<integration> \
     --secret-string '{"connect_args": { ... }}'

2. Grant the agent's pod identity role read access to the secret. You can find the role ARN in the Terraform output pod_identity_role_arn.

   JSON

   {
     "Version": "2012-10-17",
     "Statement": [
       {
         "Effect": "Allow",
         "Action": "secretsmanager:GetSecretValue",
         "Resource": "arn:aws:secretsmanager:<region>:<account-id>:secret:mcd/integrations/<integration>-*"
       }
     ]
   }

3. Register the integration in Monte Carlo. You can do this via the UI (see Self-Hosted Credentials) or via the CLI:

   Bash

   montecarlo integrations add-self-hosted-credentials-v2 \
     --connection-type <integration> \
     --self-hosted-credentials-type AWS_SECRETS_MANAGER \
     --aws-secret <secret_name>

How do I scale the agent?

agent = {
  replica_count = 3
}

custom_values = {
  container = {
    opsRunnerThreadCount = "36"
  }
}

custom_values = {
  container = {
    resources = {
      requests = {
        cpu    = "500m"
        memory = "512Mi"
      }
      limits = {
        cpu    = "2"
        memory = "2Gi"
      }
    }
  }
}

custom_values = {
  autoscaling = {
    enabled                          = true
    minReplicas                      = 1
    maxReplicas                      = 5
    targetCPUUtilizationPercentage   = 70
  }
}

How do I upgrade the agent?

agent = {
  image = "montecarlodata/agent:1.0.0-generic"
}

helm = {
  chart_version = "0.1.0"
}

How do I monitor the agent?

You can monitor the agent using standard AWS monitoring tools such as Amazon CloudWatch Container Insights or Amazon Managed Service for Prometheus. The agent exposes a health endpoint at /api/v1/test/healthcheck that can be used for liveness and readiness probes.

How do I rotate the agent token?

1. Update the secret in AWS Secrets Manager:

   Bash

   aws secretsmanager update-secret --secret-id mcd/agent/token \
     --secret-string '{"mcd_id":"<new-mcd-id>","mcd_token":"<new-mcd-token>"}'

2. Force sync the Kubernetes secret from External Secrets Operator:

   Bash

   kubectl annotate externalsecret -n mcd-agent --all \
     force-sync=$(date +%s) --overwrite

3. Restart the agent services:

   Bash

   kubectl rollout restart deployment mcd-agent-deployment -n mcd-agent
   kubectl rollout restart daemonset logs-collector metrics-collector -n mcd-agent
