Push Ingest API

ℹ️
This feature requires an Enterprise or higher plan to use.
This feature is in Public Preview. See here for more information on what this means.

What is the ETL Push Ingest API?

The ETL Push Ingest API lets you push pipeline metadata and run events directly to Monte Carlo using the pycarlo SDK or direct HTTP. Use it to integrate any ETL or orchestration tool that Monte Carlo doesn't natively support.

Two endpoints cover everything:

Endpoint	What it ingests	pycarlo method
`POST /ingest/v1/etl/metadata`	Job/pipeline structure — names, tasks, schedules, lineage	`svc.send_etl_metadata(...)`
`POST /ingest/v1/etl/runs`	Run execution data — status, timing, errors, task-level breakdown	`svc.send_etl_runs(...)`

Every accepted request returns an invocation_id. Save it — it is your primary handle for tracing a push through the downstream systems.

ℹ️
This is the push approach — you control when and how data is sent. If you prefer a turnkey setup where Monte Carlo handles scheduling and pagination, see Custom ETL Connectors instead.

End-to-end workflow

Set up your integration — Create a Custom ETL integration in the Monte Carlo UI with Push selected for metadata.
Create an Integration key — Generate a dedicated ingestion key for authenticating push requests.
Push data — Send pipeline metadata and run events using the pycarlo SDK or direct HTTP.
View pipelines — Once data is in Monte Carlo, pipelines appear in your workspace with status, run history, and lineage.

1. Set up your integration

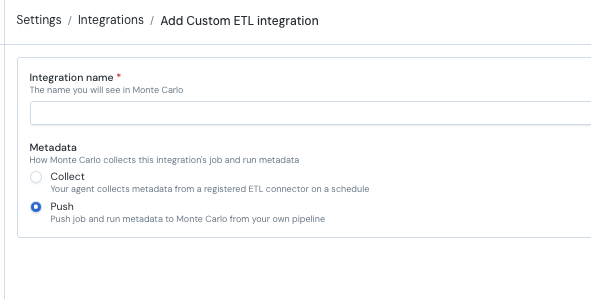

Go to Settings → Integrations → Add → Orchestration → Custom ETL integration and create a connection for your ETL tool. Select Push for metadata — the UI will provide the ingestion URLs and resource UUID.

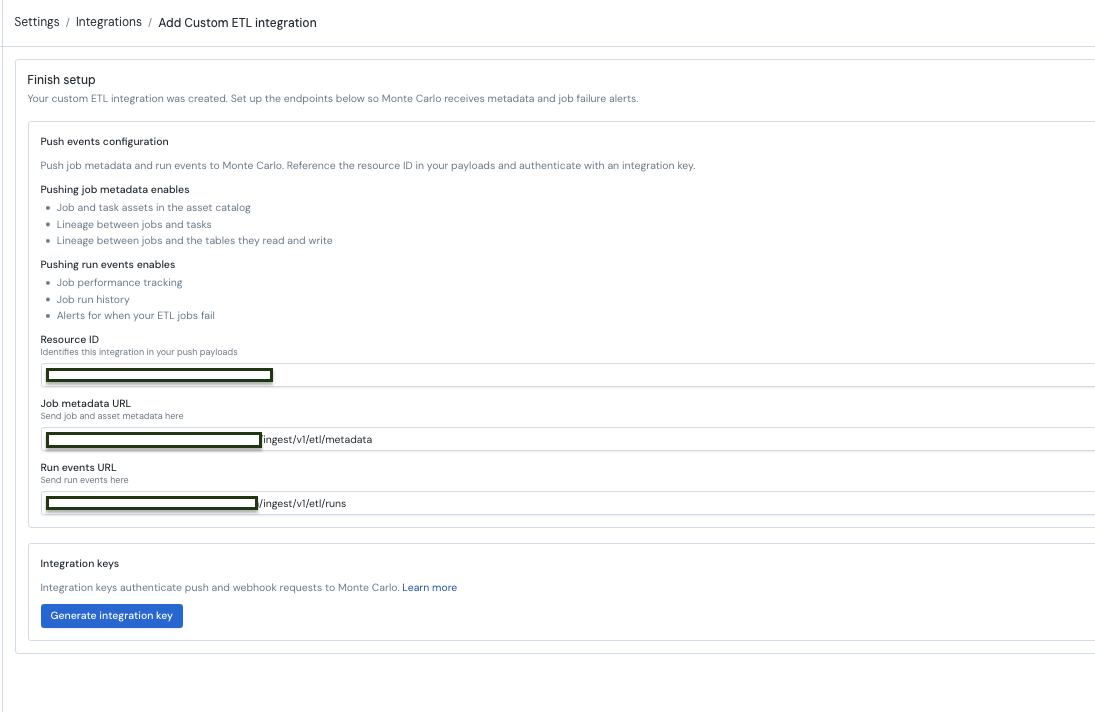

Save the resource UUID — you'll need it for every push request. You can also retrieve it later via GraphQL:

query {
  getUser {
    account {
      etlContainers{
        uuid
        name
        type
      }
    }
  }
}

2. Create an Integration key

Push requests use a dedicated integration key with scope Ingestion. A standard Monte Carlo API key will not work.

Option A — UI (recommended)

After creating your push-based ETL integration you can generate an ingestion key from the UI.

Option B — GraphQL mutation

Use the API Explorer with a GraphQL API key. Using the ETL container UUID from step 1, generate an integration key with:

mutation {
  createIntegrationKey(
    description: "ETL push ingestion key"
    scope: Ingestion
    warehouseIds: ["<etl_container_uuid>"]
  ) {
    key { id secret }
  }
}

❗️
Store the key secret immediately
The key secret is shown only once at creation time. Save it to a secure secrets manager before closing the terminal.

3. Push data

Set up your environment variables for the examples below:

export MC_INGEST_KEY_ID="<ingestion-key-id>"
export MC_INGEST_KEY_TOKEN="<ingestion-key-secret>"
export MC_RESOURCE_UUID="<resource-uuid>"

❗️
Keep credentials out of source control
Replace placeholder values with your actual credentials. Never commit real key secrets to version-controlled files or CI configuration.

Option A — pycarlo SDK (recommended)

Install the SDK:

pip install pycarlo

Initialize the client

import os
from pycarlo.core import Client, Session
from pycarlo.features.ingestion import IngestionService

service = IngestionService(mc_client=Client(session=Session(
    mcd_id=os.environ["MC_INGEST_KEY_ID"],
    mcd_token=os.environ["MC_INGEST_KEY_TOKEN"],
    scope="Ingestion",
)))

Push pipeline metadata

📘
Illustrative example
The job names, task names, and lineage references below are illustrative. Replace them with values from your ETL tool.

from pycarlo.features.ingestion import (
    EtlAsset, EtlGroup, EtlTask, Schedule, Owner, AssetRef, Tag,
)

job = EtlAsset(
    # Required
    job_source_id="pipeline-123",           # stable vendor ID
    name="Build revenue model",             # display name

    # Optional — structure
    group=EtlGroup(
        source_id="analytics-project",      # required within group
        name="Analytics Project",
        group_type="project",
    ),
    tasks=[
        EtlTask(
            task_source_id="extract-charges",
            name="Extract charges",
            task_type="SqlOperator",
            inputs=[AssetRef(asset_type="TABLE", role="INPUT",
                             fully_qualified_name="raw.billing.charges")],
            outputs=[AssetRef(asset_type="TABLE", role="OUTPUT",
                              fully_qualified_name="staging.billing.charges_clean")],
            upstream_task_source_ids=[],
        ),
        EtlTask(
            task_source_id="build-model",
            name="Build model",
            task_type="SqlOperator",
            inputs=[AssetRef(asset_type="TABLE", role="INPUT",
                             fully_qualified_name="staging.billing.charges_clean")],
            outputs=[AssetRef(asset_type="TABLE", role="OUTPUT",
                              fully_qualified_name="prod.analytics.revenue")],
            upstream_task_source_ids=["extract-charges"],
        ),
    ],

    # Optional — scheduling, ownership, metadata
    description="Daily revenue model build",
    folder="/analytics/revenue",
    job_url="https://airflow.example.com/dags/build_revenue",
    is_paused=False,
    schedule=Schedule(kind="cron", cron_expression="0 2 * * *", timezone="UTC"),
    owner=Owner(primary_email="[email protected]", team="Analytics"),
    properties=[Tag(key="env", value="production")],

    # Optional — job-level lineage
    inputs=[
        AssetRef(asset_type="TABLE", role="INPUT",
                 fully_qualified_name="raw.billing.charges"),
    ],
    outputs=[
        AssetRef(asset_type="TABLE", role="OUTPUT",
                 fully_qualified_name="prod.analytics.revenue"),
    ],
)

result = service.send_etl_metadata(
    resource_uuid=os.environ["MC_RESOURCE_UUID"],
    resource_type="airflow",    # lowercase — e.g. airflow, dbt, coalesce, custom
    events=[job],               # 1–100 per batch
)
print("invocation_id:", service.extract_invocation_id(result))

A 202 response with an invocation_id means the push was accepted.

Push run events

from pycarlo.features.ingestion import EtlRunEvent, EtlError

# Successful run
run = EtlRunEvent(
    job_source_id="pipeline-123",
    run_source_id="run-2026-06-11-001",
    status="success",
    event_time="2026-06-11T02:30:00Z",
    start_time="2026-06-11T02:00:00Z",
    end_time="2026-06-11T02:30:00Z",
    trigger="SCHEDULE",
    run_url="https://airflow.example.com/dags/build_revenue/run/001",
    task_runs=[
        EtlRunEvent(
            job_source_id="pipeline-123",
            run_source_id="run-2026-06-11-001",
            task_source_id="extract-charges",
            status="success",
            event_time="2026-06-11T02:15:00Z",
            start_time="2026-06-11T02:00:00Z",
            end_time="2026-06-11T02:15:00Z",
        ),
        EtlRunEvent(
            job_source_id="pipeline-123",
            run_source_id="run-2026-06-11-001",
            task_source_id="build-model",
            status="success",
            event_time="2026-06-11T02:30:00Z",
            start_time="2026-06-11T02:15:00Z",
            end_time="2026-06-11T02:30:00Z",
        ),
    ],
)

result = service.send_etl_runs(
    resource_uuid=os.environ["MC_RESOURCE_UUID"],
    resource_type="airflow",
    events=[run],               # 1–100 per batch
)
print("invocation_id:", service.extract_invocation_id(result))

Reporting failures

For failed runs, set status to "failed" and include an error dict:

failed_run = EtlRunEvent(
    job_source_id="pipeline-123",
    run_source_id="run-2026-06-11-002",
    status="failed",
    event_time="2026-06-11T14:05:00Z",
    start_time="2026-06-11T14:00:00Z",
    end_time="2026-06-11T14:05:00Z",
    trigger="SCHEDULE",
    error=EtlError(
        message="Connection timeout after 30s",
        code="CONN_TIMEOUT",
        failure_type="infrastructure",
        retryable=True,
    ),
)

Option B — Direct HTTP

If you prefer not to use the pycarlo SDK, you can call the endpoints directly.

Base URL (production): https://integrations.getmontecarlo.com

Authentication headers:

Header	Value
`x-mcd-id`	Integration key ID
`x-mcd-token`	Integration key secret
`Content-Type`	`application/json`

Push metadata

curl -X POST https://integrations.getmontecarlo.com/ingest/v1/etl/metadata \
  -H "x-mcd-id: $MC_INGEST_KEY_ID" \
  -H "x-mcd-token: $MC_INGEST_KEY_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "resource_uuid": "'$MC_RESOURCE_UUID'",
    "resource_type": "airflow",
    "events": [
      {
        "job_source_id": "pipeline-123",
        "name": "Build revenue model",
        "description": "Daily revenue model build",
        "schedule": {
          "kind": "cron",
          "cron_expression": "0 2 * * *",
          "timezone": "UTC"
        }
      }
    ]
  }'

Push run events

curl -X POST https://integrations.getmontecarlo.com/ingest/v1/etl/runs \
  -H "x-mcd-id: $MC_INGEST_KEY_ID" \
  -H "x-mcd-token: $MC_INGEST_KEY_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "resource_uuid": "'$MC_RESOURCE_UUID'",
    "resource_type": "airflow",
    "events": [
      {
        "job_source_id": "pipeline-123",
        "run_source_id": "run-001",
        "status": "success",
        "event_time": "2026-06-11T02:30:00Z",
        "start_time": "2026-06-11T02:00:00Z",
        "end_time": "2026-06-11T02:30:00Z",
        "trigger": "SCHEDULE"
      }
    ]
  }'

Response codes

Both endpoints return 202 Accepted on success:

{ "invocation_id": "<uuid>" }

Status	Meaning
`400`	Schema validation failed. Check `details` in the response body for field-level errors.
`401`	Authentication failed — wrong key ID or secret.
`403`	The key is not authorized for the `resource_uuid` in the payload.
`413`	Payload too large — compressed body exceeds 1 MB. Split into smaller batches.
`5xx`	Server error — retry with exponential backoff.

4. View pipelines

Once data is pushed, pipelines appear in your Monte Carlo workspace. You can:

View job/pipeline status and run history
See task-level breakdown for each run
Trace cross-domain lineage connecting ETL pipelines to monitored warehouse tables (when inputs/outputs are populated)
Set up failure alerting on pipeline runs
Track run duration for SLA monitoring

Data schemas

Both the Push API and Custom ETL Connectors use the same schemas. The pycarlo SDK provides typed dataclasses, but you can also pass plain dicts with the same keys when using direct HTTP.

EtlAsset — pipeline/job metadata

Input to send_etl_metadata(). Describes the structural metadata of a job or pipeline.

Field	Type	Required	Description
`job_source_id`	str	yes	Stable vendor identifier for the job
`name`	str	yes	Human-readable job name
`group`	EtlGroup	no	Parent container (workspace, project, folder)
`tasks`	list[EtlTask]	no	Task breakdown within the job
`description`	str	no	Job description
`folder`	str	no	Folder path in vendor UI
`is_paused`	bool	no	Whether the job is disabled
`job_url`	str	no	Link to the job in vendor UI
`schedule`	Schedule	no	How the job is triggered
`owner`	Owner	no	Job ownership
`properties`	list[Tag]	no	Key-value tags
`attributes`	dict	no	Arbitrary vendor-specific metadata (passed through)
`inputs`	list[AssetRef]	no	Data assets the job reads (enables lineage)
`outputs`	list[AssetRef]	no	Data assets the job writes (enables lineage)
`triggered_job_source_ids`	list[str]	no	Downstream jobs triggered by this one

EtlRunEvent — run execution data

Input to send_etl_runs(). Describes a specific execution of a job.

Field	Type	Required	Description
`job_source_id`	str	yes	Which job this run belongs to
`run_source_id`	str	yes	Vendor's unique run identifier
`status`	str	yes	Run status — see allowed values
`event_time`	str	yes	ISO 8601 timestamp with timezone — when this event was produced
`start_time`	str	no	ISO 8601 — when the run started
`end_time`	str	conditional	ISO 8601 — when the run ended. Required for terminal statuses.
`trigger`	str	no	What started the run — see trigger types
`run_url`	str	no	Link to the run in vendor UI
`task_source_id`	str	no	Task identifier (present only for task-level runs inside `task_runs`)
`task_runs`	list[EtlRunEvent]	no	Task-level breakdown — each entry is itself an EtlRunEvent
`error`	EtlError	conditional	Error details. Required when status is `failed` or `error`.
`inputs`	list[AssetRef]	no	Runtime lineage — assets actually read in this run
`outputs`	list[AssetRef]	no	Runtime lineage — assets actually written in this run
`attributes`	dict	no	Arbitrary vendor-specific metadata

Sub-schemas

EtlGroup

Field	Type	Required	Description
`source_id`	str	yes	Vendor's unique group identifier
`name`	str	no	Human-readable group name
`group_type`	str	no	Type label (e.g. `"workspace"`, `"project"`)
`schedule`	Schedule	no	Group-level schedule
`attributes`	dict	no	Arbitrary metadata

EtlTask

Field	Type	Required	Description
`task_source_id`	str	yes	Vendor's unique task identifier
`name`	str	yes	Human-readable task name
`task_type`	str	no	Operator/step type (e.g. `"SqlOperator"`, `"PythonOperator"`)
`description`	str	no	Task description
`inputs`	list[AssetRef]	no	Assets this task reads
`outputs`	list[AssetRef]	no	Assets this task writes
`upstream_task_source_ids`	list[str]	no	Task dependencies within the job
`triggered_job_source_ids`	list[str]	no	Jobs triggered by this task
`attributes`	dict	no	Arbitrary metadata

EtlError

Field	Type	Required	Description
`message`	str	yes	Error message
`code`	str	no	Error code
`failure_type`	str	no	Category of failure
`retryable`	bool	no	Whether the error is retryable
`upstream_failed_task_source_ids`	list[str]	no	Tasks whose failure caused this one
`structured_fields`	dict	no	Arbitrary structured error metadata

Schedule

Field	Type	Required	Description
`kind`	str	yes	`cron`, `interval`, `event`, `upstream`, or `manual`
`cron_expression`	str	no	Cron expression (when kind is `cron`)
`interval_seconds`	int	no	Interval in seconds (when kind is `interval`)
`timezone`	str	no	Schedule timezone
`next_run_at`	str	no	ISO 8601 next scheduled run
`paused`	bool	no	Whether the schedule is paused
`event_trigger`	dict	no	Event trigger details (when kind is `event`)
`upstream_job_source_ids`	list[str]	no	Upstream dependencies (when kind is `upstream`)

Owner

Field	Type	Required	Description
`primary_email`	str	no	Owner's email
`primary_name`	str	no	Owner's display name
`primary_external_id`	str	no	External user ID
`run_as_email`	str	no	Service account / execution identity
`notification_emails`	list[str]	no	Additional notification recipients
`team`	str	no	Owning team name

AssetRef

Field	Type	Required	Description
`asset_type`	str	yes	`TABLE`, `VIEW`, `FILE`, `TOPIC`, `DATASET`, or `DASHBOARD`
`role`	str	yes	`INPUT` or `OUTPUT` (must match the list it's in)
`fully_qualified_name`	str	one of these	Vendor-native asset name (e.g. `db.schema.table`)
`mcon`	str	one of these	Monte Carlo Object Name (internal identifier)

At least one of fully_qualified_name or mcon must be provided.

Tag

Field	Type	Required	Description
`key`	str	yes	Tag key
`value`	str	yes	Tag value

Allowed enum values

Run statuses

success, failed, skipped, cancelled, in_progress, error, timed_out, queued, blocked, inactive, restarting, up_for_retry, up_for_reschedule, upstream_failed, removed, scheduled, deferred, pass, fail, warn, partial_success, unknown

Terminal statuses (require end_time): success, failed, skipped, cancelled, error, timed_out, pass, fail, partial_success

Failed statuses (require error): failed, error

Trigger types

SCHEDULE, MANUAL, API, UPSTREAM, EVENT, CYCLIC, BACKFILL, RETRY

Asset types

TABLE, FILE, VIEW, TOPIC, DATASET, DASHBOARD

Lineage

The inputs and outputs fields on EtlAsset, EtlTask, and EtlRunEvent enable cross-domain lineage in Monte Carlo:

Static lineage (on EtlAsset or EtlTask) — what a job/task always reads and writes. Declared once in metadata.
Runtime lineage (on EtlRunEvent) — what was actually read and written in a specific run. Use when lineage varies between runs (conditional logic, dynamic table selection).

When lineage is populated, Monte Carlo can:

Show which warehouse tables are produced by which ETL pipelines
Trace downstream impact when a pipeline fails
Connect ETL health to data quality monitors on the output tables

Lineage is entirely optional. If the vendor API doesn't expose input/output assets, omit the fields.

Validation rules

The pycarlo SDK enforces these rules at push time. If you use direct HTTP, the server validates on receipt.

Run events:

job_source_id, run_source_id, status, and event_time are required and non-empty
All datetime fields must be valid ISO 8601 with timezone
Terminal statuses require end_time
failed / error statuses require an error dict
task_runs are validated recursively (same rules)

Metadata events:

job_source_id and name are required and non-empty
group.source_id is required when group is provided
tasks[].task_source_id and tasks[].name are required when tasks are provided
inputs / outputs asset refs are validated at both asset and task level

General:

Batch size: 1–100 events per request
Omit None values and empty lists — the API expects sparse payloads

FAQs

What happens to my integration keys if I delete the integration?

Deleting an integration in Monte Carlo also deletes any integration keys (including Ingestion-scoped keys) associated with it. Any scripts or pipelines using those keys will start failing with 401 errors. Before deleting an integration, make sure no active push pipelines depend on its keys — or create new keys on a replacement integration first.

Updated about 16 hours ago

Did this page help you?
